6 In. Aircraft Extension Drills

Item #: CS6X
  • 6 Inch Aircraft Extension Drills are designed for drilling holes in aircraft assembly work where long reach is needed
  • Ideal for drilling aluminum and low to medium steel alloys
  • Drills will not walk on workpiece due to 135° self-centering split point
  • Flute length is the same as a standard jobber drill
  • Black Oxide Treated High Speed Steel enhances heat resistance and longer tool life
  • Spring tempered shanks prevent permanent bending when drilling holes not in direct alignment
See All Sizes
Twist Drill Types Twist Drill Operating Guidelines Twist Drill Decimal Equivalency Chart

⚠ Warning: Cancer & Reproductive Harm. See P65warnings.ca.gov for more info.
Cutting tools may shatter. Always wear appropriate safety equipment.
High Speed Steel

PT-DRILLS

Drill Type
Aircraft Extension Drills
Performance Level
General Purpose
Size
Fractional Sizes
Drilling Application
Aluminum, Low-Medium Steel Alloys
Point Style
135 Degree Split Point
Package Style
Standard

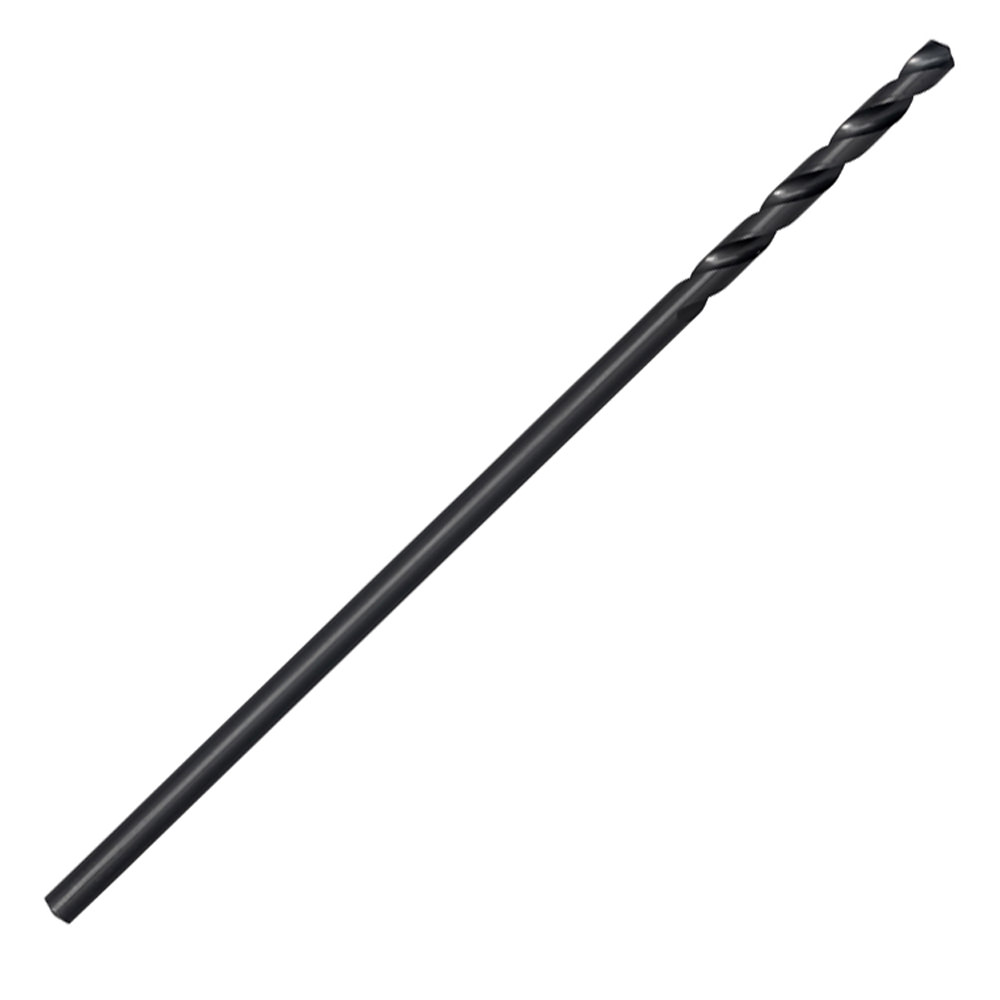

CS12X DRILL

12 In. Aircraft Extension Drills

  • 12 Inch Aircraft Extension Drills are designed for drilling holes in aircraft assembly work where long reach is needed
  • Ideal for drilling aluminum and low to medium steel alloys
  • Drills will not walk on workpiece due to 135° self-centering split point
  • Flute length is the same as a standard jobber drill
  • Black Oxide Treated High Speed Steel enhances heat resistance and longer tool life
  • Spring tempered shanks prevent permanent bending when drilling holes not in direct alignment
Item#:
CS12X
Manufacturer:
Champion
Distributor Log In

XLUB-WAX-2

BruteLube Cutting Wax

  • Extends Tool Life And Reduces Chip Welding During Metal Drilling, Reaming, Cutting And Tapping
  • Wax Reduces Mess- Clings To Tool For A Continuous Shield Against Friction And Heat
  • Provides Precision Finish With Closer Tolerances On Finished Work
  • Use On Steel, Stainless Steel, Aluminum, And Exotic Alloys
Item#:
XLUB-WAX
Manufacturer:
Brute Platinum
Distributor Log In

1200 DRILL

12 In. Longboy Drills

  • For Deephole Drilling Applications Where A Maximum 9 Inch Flute Length Is Required
  • Designed For General Purpose Drilling Of Aluminum, And Other Low To Medium Steel Alloys
  • 118° Point
  • Straight Shank Drills 17/32 Inch And Larger Will Not Fit Into 1/2 Inch Drill Chucks
Item#:
1200
Manufacturer:
Champion
Distributor Log In

7006 DRILL

6 In. Aircraft Extension Drills

  • 6 Inch Aircraft Extension Drills are designed for drilling holes in aircraft assembly work where long reach is needed
  • Ideal for drilling aluminum and low to medium steel alloys
  • Drills will not walk on workpiece due to 135° self-centering split point
  • Flute length is the same as a standard jobber drill
  • Black Oxide Treated High Speed Steel enhances heat resistance and longer tool life
  • Spring tempered shanks prevent permanent bending when drilling holes not in direct alignment
Item#:
7006
Manufacturer:
Champion
Distributor Log In

SKU Number Size Decimal Equivalent Flute Length (IN) Overall Length (IN) Price Quantity Add to Cart
CS6X-1 1 0.228 2-5/8 6

CS6X-8 8 0.1990 2-7/16 6

CS6X-10 10 0.1935 2-7/16 6

CS6X-11 11 0.191 2-5/16 6

CS6X-20 20 0.161 2-1/8 6

CS6X-21 21 0.159 2-1/8 6

CS6X-29 29 0.136 1-3/4 6

CS6X-30 30 0.1285 1-5/8 6

CS6X-40 40 0.098 1-3/8 6

CS6X-1/16 1/16 0.0625 7/8 6

CS6X-5/64 5/64 0.0781 1 6

CS6X-3/32 3/32 0.0938 1-1/4 6

CS6X-7/64 7/64 0.1094 1-1/2 6

CS6X-1/8 1/8 0.125 1-5/8 6

CS6X-9/64 9/64 0.1406 1-3/4 6

CS6X-5/32 5/32 0.1562 2 6

CS6X-11/64 11/64 0.1719 2-1/8 6

CS6X-3/16 3/16 0.1875 2-5/16 6

CS6X-13/64 13/64 0.2031 2-7/16 6

CS6X-7/32 7/32 0.2188 2-1/2 6

CS6X-15/64 15/64 0.2344 2-5/8 6

CS6X-1/4 1/4 0.25 2-3/4 6

CS6X-17/64 17/64 0.26 2-7/8 6

CS6X-9/32 9/32 0.2812 2-15/16 6

CS6X-19/64 19/64 0.2968 3 6

CS6X-5/16 5/16 0.3125 3-3/16 6

CS6X-21/64 21/64 0.3281 3-5/16 6

CS6X-11/32 11/32 0.3438 3-7/16 6

CS6X-23/64 23/64 0.3593 3-1/2 6

CS6X-3/8 3/8 0.375 3-5/8 6

CS6X-25/64 25/64 0.3906 3-3/4 6

CS6X-13/32 13/32 0.4062 3-7/8 6

CS6X-27/64 27/64 0.4218 3-15/16 6

CS6X-7/16 7/16 0.4375 4 6

CS6X-29/64 29/64 0.4531 4-1/8 6

CS6X-15/32 15/32 0.4687 4-5/16 6

CS6X-31/64 31/64 0.4843 4-7/16 6

CS6X-1/2 1/2 0.5 4-1/2 6
